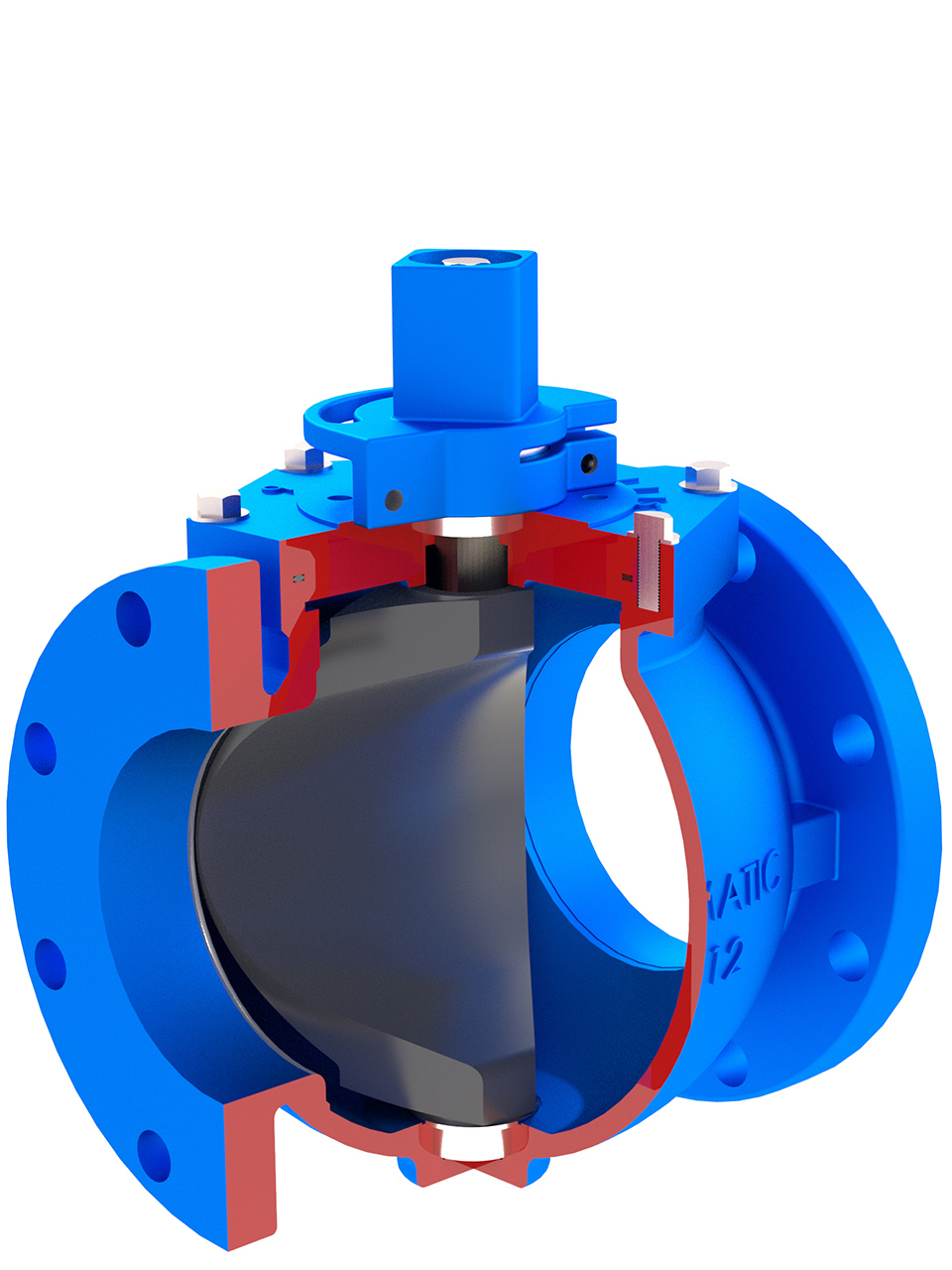

Flomatic’s Flo-E-Centric Model 5400 is an energy-efficient round-port eccentric plug valve designed in compliance with AWWA C517-16. The body, bonnet and NBR-encapsulated plug are constructed of ASTM A536 grade 65-45-12 ductile iron. The body and bonnet come standard with fusion-bonded NSF 61 epoxy powder-coated, inside and outside. The valve stem is equipped with V-type packing that is self-adjusting and replaceable while the valve is under pressure. Flomatic plug valves incorporate a nickel-welded seat for long service life and are designed primarily for applications where slurries, solids or grit are present. Designed for both on-off function and process control in industrial and municipal applications, the Model 5400 is available in six different configurations in a size range from 2 through 24 inches. They are also available with a bare stem, operating nut, mechanical joint plug, electric actuator, gearbox and with standard ISO top-mounting flange. 800-833-2040; www.flomatic.com
